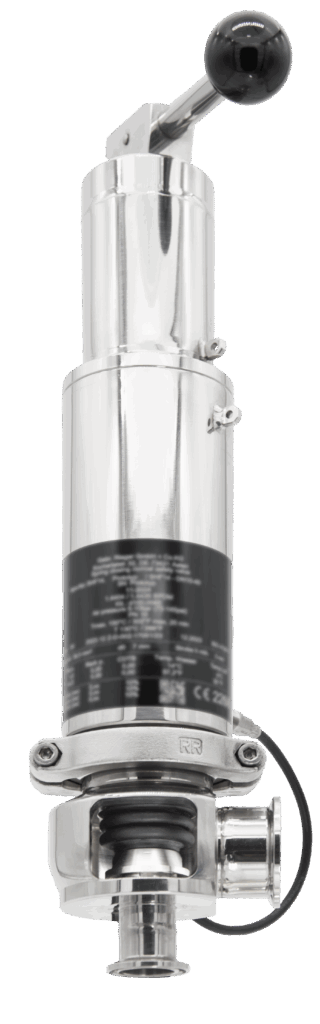

The RIEGER safety valve type SH prevents impermissible excess pressure for vaporous and gaseous media in system components and tanks. The set pressure is generally greater than the operating pressure of the system.
The valve opens with full stroke as soon as the pressure exceeds 10 %.
The pharmaceutical, chemical and biotechnology industries as well as the cosmetics, beverage and food industries are the ideal areas of application for the RIEGER safety valve.
Actuation variants:
| Material | product touched optional not in contact with the product |
1.4404/AISI316L 1.4435/AISI316L 1.4301/AISI304 |
|
| Seals | O-rings/seals | EPDM (others on request) |
|
| Temperatures | maximum | EPDM | |
| Continuous operating temperature Sterilizing temperature |
130 °C*
150 °C* |
||
| Press | Closing pressure
Control air pressure |
from 1.5 bar – 8 bar
min 6 bar – |
|
| Surfaces | product touched optional not in contact with the product |
Ra ≤ 0.8 µm e-polished, other surfaces on request Ra ≤ 1.6 µm |
|
| Connections Standard Pipe classes |
DIN 11850-R2 (DIN 11866 A) O.D. tube (DIN 11866 C) |
||
