Aseptic Bottom Seat Valves Type B

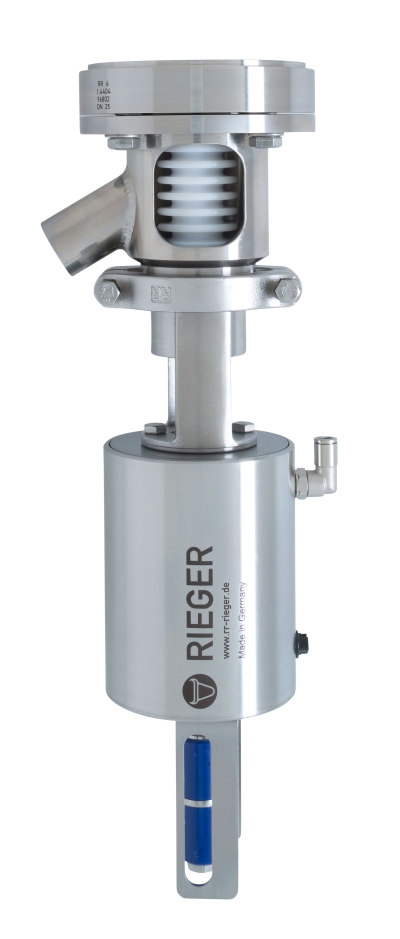

The valve body of the RIEGER aseptic valves is hermetically sealed from the environment, thus ensuring the perfect protection for your liquid product. The pocket-free design of the valve body and the optimum surface make it an indispensable part of sterile process engineering in food technology and pharmaceuticals.

Thanks to the modular design the reconstruction of aseptic into hygienic version, of "air to open" on "air to closed", of liquid on fibrous and particulate media is no problem. The dimensions can be adapted to local conditions.

Even under special conditions such as high sterilization temperatures RIEGER Aseptic valves meet all requirements regarding reliability and reliable operation.
Materialin contact with product
optional
not in contact with product
1.4404/AISI316L
1.4435/AISI316L
1.4301/AISI304

GasketsPTFE bellows
metal bellows
O-rings/gaskets
PTFE
1.4571/1.4404
EPDM

Temperaturesmaximum
EPDMPTFE
 continuous operation

steam sterilization

130 °C*

150 °C*

121 °C*

135 °C* short-time (approx. 20 min)

Pressureclosing pressure

air pressure

max. 6 bar

min 6 bar -
max. 10 bar

Surfacesin contact with product
optional


not in contact with product
Ra ≤ 0,8 µm
e-polished,
other surfaces
on request
Ra ≤1,6 µm

Connections
Standard-
pipe classes
DIN 11850-R2 (DIN 11866 A)
O.D.-Tube (DIN 11866 C)
DIN EN ISO 1127 (DIN 11866-B)
                                                                                  *dependent upon operating conditions
Request catalogue for more details.
Construction of the valve

massive valve housing

no dead spaces

completely draining

many possible installation orientations


Absolute product safety

perfect isolation from the environment

no sump , no dome


Serviceability

seal replacement without special tools

low downtime

screwed bellows

perfectly cleanable


Efficiency

long lifetime of PTFE bellows

standard seals

minimal maintenance costs


Additional certificates
in 3-A-design possible


Recommended Bürkert control tops for aseptic valves with 24 V DC or ASI bus
Contactless position with three switching points (teach-in function) with 3 internal feedback sensors, 1 output for external feedback (external feedback not included).


Two alternatives:

24 V DC with 4 digital outputs screw terminals, cable gland:


AS-Interface with a maximum of 62 slaves flat cable clamp with 1 m cable


Remarks:

  • 0 solenoid valve e.g. for single seat valves - pure feedback function
  • 1 solenoid valve for e.g. for single seat valves with actuators NC or NO
  • 2 solenoid valves for e.g. for single seat valves with air/air actuator or double seat valves N5, N9


For more details see website Bürkert www.buerkert.com

All Valves are available in special alloys, such as Hastelloy C22, 1.4539/904L, 1.4529, AL6XN and others.
