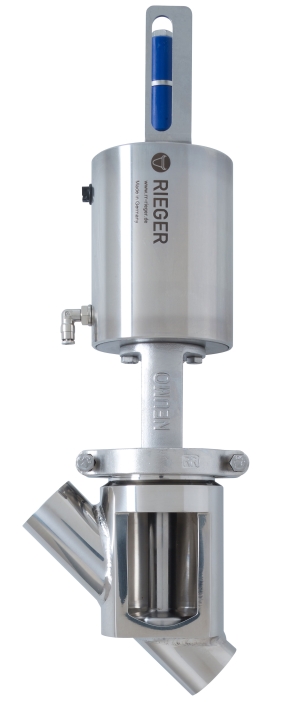

Hygienic Inclined Seat Valves LCV Type Y

RIEGER LCV Single seat valves are found in the plants of food industries. They combine the advantages of the dead leg free valve body with the concept of the maintenancefree welded pneumatic actuator. The spring-loaded actuator can be used as spring-closing as well as spring opening by easy turning.

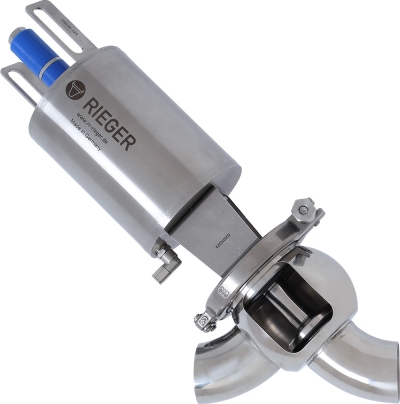

Right angle and change-over valves base on the same bodies. The can be combined on the many ways and so diminish the spare part costs. In daily use, the LCV valves grant high flexibility inside the system and the perfect application for your liquid products.
Materialin contact with product
not in contact with product
1.4404/AISI316L
1.4301/AISI304

Gaskets

O-rings/gaskets

EPDM
FKM

Temperatures
maximum


continuous operation

steam sterilization

ambient temperature

130 °C*

135 °C* short-time
(approx. 20 min)

max. 60 °C

Pressures

closing pressure
but DN 100

control air pressure


air connection

control air

max. 6 bar
max. 4,5 bar

min 6 bar -
max. 10 bar

1/8" for 6 mm hose

oil free acc. class 3

Surfaces
in contact with product

not in contact with product

Ra ≤ 0,8 µm

Ra ≤ 1,6 µm


Connections
standard pipes		DIN 11850-R2 (DIN 11866 A)

                                                                                 *dependent upon operating conditions
See Hygienic Inclined Seat Valve ESV Type Y
Design

closing pressure: 6 bar

resistant against aggressive media

for proximity switches and control tops

highest safety standard via caged spring

Handling

maintenance free

required air supply pressure: 5 - 8 bar (72,5-116 psi)

fast assembly/disassembly

suitable for all common air fittings


Flexibility
switching from spring to close (NC) to spring to open (NO)
and vice versa with same actuator possible

only 3 actuators for all sizes in our building block system

Booster available

adaption for all common control

tops available flexible in use up to 165.000 cycles


Recommended Bürkert control tops for aseptic valves with 24 V DC or ASI bus
Contactless position with three switching points (teach-in function) with 3 internal feedback sensors, 1 output for external feedback (external feedback not included).


Two alternatives:

24V D C with 4 digital outputs screw terminals, cable gland:


AS-Interface with a maximum of 62 slaves flat cable clamp with 1 m cable


Remarks:

  • 0 solenoid valve e.g. for single seat valves - pure feedback function
  • 1 solenoid valve for e.g. for single seat valves with actuators NC or NO
  • 2 solenoid valves for e.g. for single seat valves with air/air actuator or double seat valves N5, N9


For more details see website Bürkert www.buerkert.com
