Mix Proof Valves N13 - Hybrid

In patented RIEGER aseptic double seat valve N13 the technologies of hygienic and aseptic valve design are considered in one valve.

It combines the advantages of the well-proven hygienic double seat valve N1 with those of aseptic double seat valve N7. It could be called a hybrid double-seat valve.

The bellows seals hermetically to the environment. The double valve seat separates the two process lines of one another, so that an undesired mixing of two liquids is avoided.

The special feature of the valve saves CIP/SIP valves and the leakage chamber and thus allows a very compact valve.

This valve replaces the well-known on the market double seat valves with shaft rinsing, thereby reducing the cost for the sealing medium and the control thereof is omitted.

Materialin contact with product
optional
not in contact with product
1.4404/AISI316L
1.4435/AISI316L
1.4301/AISI304

Gaskets

PTFE bellows
metal bellows
O-rings/gaskets
PTFE
1.4571/1.4404
EPDM

Temperatures
maximum
EPDMPTFE
 continuous operation

steam sterilization
 		130 °C*

150 °C*
 		121 °C*

135 °C* short-time
(approx. 20 min)

Pressures

closing pressure

air pressure
 		max. 6 bar

min. 6 bar -
max. 10 bar

Surfaces

in contact with product
optional


not in contact with product
Ra ≤ 0,8 µm
e-polished,
other surfaces
on request
Ra ≤1,6 µm

Connections
Standard-
pipe classes
DIN 11850-R2 (DIN 11866 A)
O.D.-Tube (DIN 11866 C)
DIN EN ISO 1127 (DIN 11866-B)
                                                                                 *dependent upon operating conditions

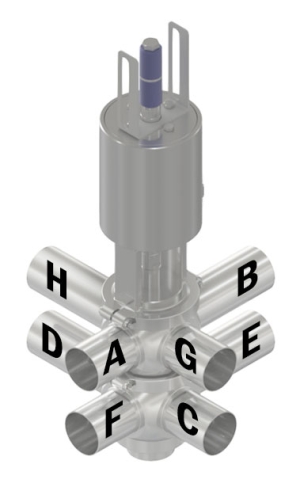

Port configurations as shown
in picture or in 360° possible.
Construction of the valve

massive valve housing

no dead spaces

completely draining

many possible installation orientations


Absolute product safety

perfect isolation from the environment

no sump , no dome


Serviceability

seal replacement without special tools

low downtime

screwed bellows

perfectly cleanable


Efficiency

long lifetime of PTFE bellows

standard seals

minimal maintenance costs


This control top has been developed between AWH and Rieger in collaboration with Bürkert. It serves as a custom-fit solution for our in-house hygienic and aseptic process valves to achieve an even more efficient and precise application.


Contact-free inductive valve position measuring (Teach function)

  • status display luminated in colour
  • integrated control air supply to the actuator
  • field bus port AS-interface, DeviceNet, IO-Link or Bürkert system bus (büS)
  • with ATEX-option:
    Ex II 3 G Ex ec IIC T4 Gc X
    Ex II 3 D Ex tc IIIC T135°C Dc X


FlowStar is available in the models 24 V DC, AS-I bus, IO-Link (Port Class A) or Ethernet IP.
All models  are available as the following alternative:

  • 3 solenoid valves, 3 internal proximity switches + 1 outlet for external proximity switch


Mounting kit integrated in Control Top – no separate mounting kit necessary. Exception for LCV valves, ESV valves.

All Valves are available in special alloys, such as Hastelloy® C-22, 1.4539/904L, 1.4529, AL-6XN® and others.
