Aseptic Shut Off Valves

The valve body of the RIEGER aseptic valves is hermetically sealed from the environment, thus ensuring the perfect protection for your liquid product. The pocket-free design of the valve body and the optimum surface make it an indispensable part of sterile process engineering in food technology and pharmaceuticals.

Thanks to the modular design the reconstruction of aseptic into hygienic version, of "air to open" on "air to closed", of liquid on fibrous and particulate media is no problem. The dimensions can be adapted to local conditions.

Even under special conditions such as high sterilization temperatures RIEGER Aseptic valves meet all requirements regarding reliability and reliable operation.
Materialin contact with product
optional
not in contact with product
1.4404/AISI316L
1.4435/AISI316L
1.4301/AISI304

GasketsPTFE bellows
metal bellows
O-rings/gaskets		PTFE
1.4571/1.4404
EPDM

Temperaturesmaximum
EPDMPTFE
 continuous operation

steam sterilization
 		130 °C*

150 °C*
 		121 °C*

135 °C* short-time (approx. 20 min)

Pressureclosing pressure

air pressure
 		max. 6 bar

min 6 bar -
max. 10 bar

Surfacesin contact with product
optional


not in contact with product
Ra ≤ 0,8 µm
e-polished,
other surfaces
on request
Ra ≤1,6 µm

Connections
Standard-
pipe classes
DIN 11850-R2 (DIN 11866 A)
O.D.-Tube (DIN 11866 C)
DIN EN ISO 1127 (DIN 11866-B)
                                                                                  *dependent upon operating conditions

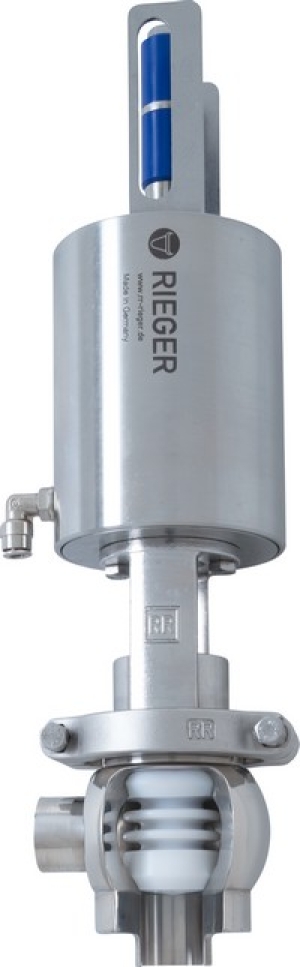

Right Angle Type L

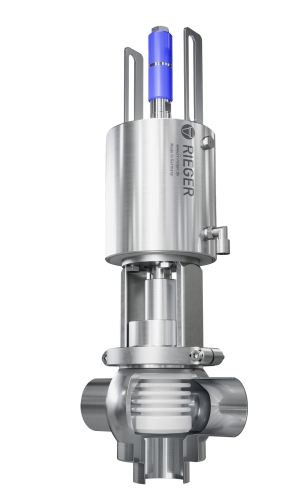

Double Right Angle Type T

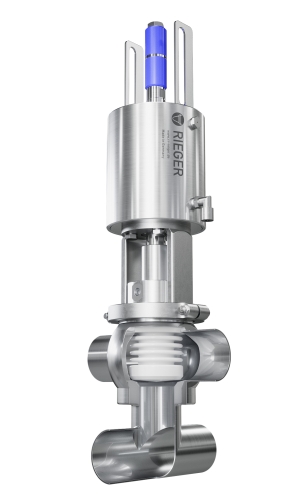

Cross Type TT

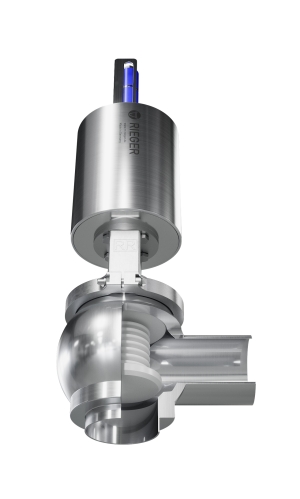

Tangential Type (Horizontal)
Construction of the valve

massive valve housing

no dead spaces

completely draining

many possible installation orientations


Absolute product safety

perfect isolation from the environment

no sump , no dome


Serviceability

seal replacement without special tools

low downtime

screwed bellows

perfectly cleanable


Efficiency

long lifetime of PTFE bellows

standard seals

minimal maintenance costs


Additional certificates
in 3-A-design possible


This control top has been developed between AWH and Rieger in collaboration with Bürkert. It serves as a custom-fit solution for our in-house hygienic and aseptic process valves to achieve an even more efficient and precise application.


Contact-free inductive valve position measuring (Teach function)

  • status display luminated in colour
  • integrated control air supply to the actuator
  • field bus port AS-interface, DeviceNet, IO-Link or Bürkert system bus (büS)
  • with ATEX-option:
    Ex II 3 G Ex ec IIC T4 Gc X
    Ex II 3 D Ex tc IIIC T135°C Dc X


FlowStar is available in the models 24 V DC, AS-I bus, IO-Link (Port Class A) or Ethernet IP.
All models  are available as the following alternatives::

  • without solenoid valve, 3 internal proximity switches + 1 outlet for external proximity switch
  • 1 solenoid valve, 3 internal proximity switches + 1 outlet for external proximity switch
  • 2 solenoid valves, 3 internal proximity switches + 1 outlet for external proximity switch


Mounting kit integrated in Control Top – no separate mounting kit necessary. Exception for LCV valves, ESV valves.

All Valves are available in special alloys, such as Hastelloy® C-22, 1.4539/904L, 1.4529, AL-6XN® and others.
