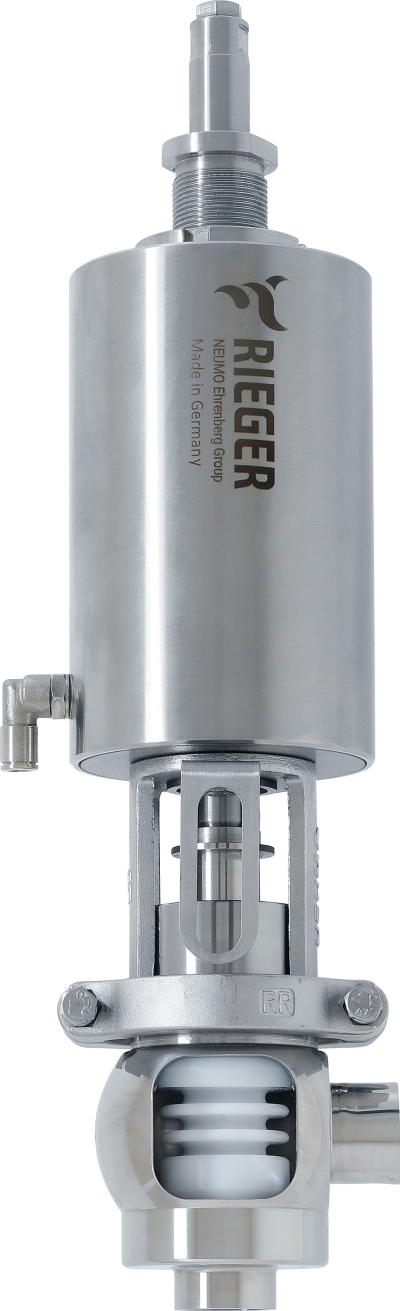

Aseptic Overflow Valves E8

RIEGER Overflow valves E8 are a combination of angle valves and relief valves. Unlike an overflow valve, this valve opens on request up to 100% stroke like shut-off valve. It is possible to seal the overflow valves.

One possible application is the protection of forced-feed pumps e.g. peristaltic pumps.

The overflow valve E8 is suitable for all liquid pumpable media.

Overflow valves are no safety valves.
For this purpose we recommend the TÜV certified safety valve type SH .

Materialin contact with product
optional
not in contact with product
1.4404/AISI316L
1.4435/AISI316L
1.4301/AISI304

Gaskets

PTFE bellows
O-rings/gaskets

PTFE
EPDM
(others on request)



Temperatures

maximumEPDMPTFE


continuous operation

steam sterilization

130 °C*

150 °C*

121 °C*

135 °C* short-time
(approx. 20 min)

Pressures

possible set pressure for
O-ring version

0,5 - 10 bar (other pressures on request)



PTFE bellows version

set pressure range
dependent on installed
pressure spring

2 - 6 bar

Requested set pressure required in purchase order


air pressure

min. 6 bar -
max. 10 bar


Surfaces

in contact with product
optional


not in contact with product
Ra ≤ 0,8 µm
e-polished, other surfaces on request

Ra ≤ 1,6 µm

Connections
Standard-
pipe classes
DIN 11850-R2 (DIN 11866 A)
O.D.-Tube (DIN 11866 C)
DIN EN ISO 1127 (DIN 11866-B)
                                                                                 *dependent upon operating conditions
Construction of the valve

massive valve housing

no dead spaces

completely draining

many possible installation orientations


Absolute product safety

perfect isolation from the environment

no sump, no dome


Serviceability

seal replacement without special tools

low downtime

screwed bellows

perfectly cleanable


Efficiency

long lifetime of PTFE bellows

standard seals

minimal maintenance costs


Additional certificates
in 3-A-design possible


Overflow E8 can only be equipped with a proximity sensor with a
maximum diameter of 12 mm as electronic feedback. This is screwed
to the bracket between the valve housing and the actuator. This proximity
switch is usually not in scope of delivery. Or ask us for control tops.

Other solutions upon request.



All Valves are available in special alloys, such as Hastelloy C22, 1.4539/904L, 1.4529, AL6XN and others.
