Aseptic Filling Valves

Suitable for liquid, fibrous and particulate products such as yogurt, soups with meat deposits, strawberry jam.

A more efficient production and higher productivity by higher output is possible by faster switching and higher switching cycles. The durability of the PTFE bellows reduces production losses by reduced downtime.


Best quality of your products in the entire production process is the utmost importance for you.

Materialin contact with product
optional
not in contact with product
1.4404/AISI316L
1.4435/AISI316L
1.4301/AISI304

GasketsPTFE bellows
metal bellows
O-rings/gaskets		PTFE
1.4571/1.4404
EPDM

Temperaturesmaximum
EPDMPTFE
 continuous operation

steam sterilization
 		130 °C*

150 °C*
 		121 °C*

135 °C* short-time (approx. 20 min)

Pressuresclosing pressure

air pressure
 		max. 6 bar

min 6 bar -
max. 10 bar

Surfacesin contact with product
optional


not in contact with product
Ra ≤ 0,8 µm
e-polished,
other surfaces
on request
Ra ≤ 1,6 µm

Connections
Standard-
pipe classes
DIN 11850-R2 (DIN 11866 A)
O.D.-Tube (DIN 11866 C)
DIN EN ISO 1127 (DIN 11866-B)
                                                                                  *dependent upon operating conditions

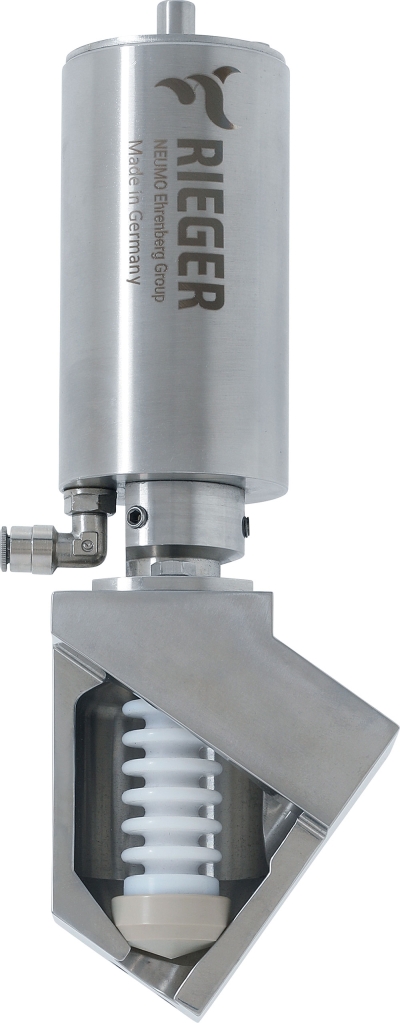

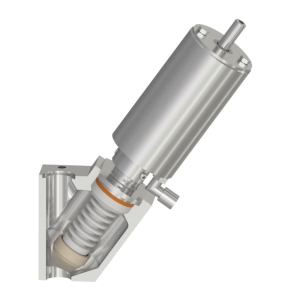

Inclined seat filling valve

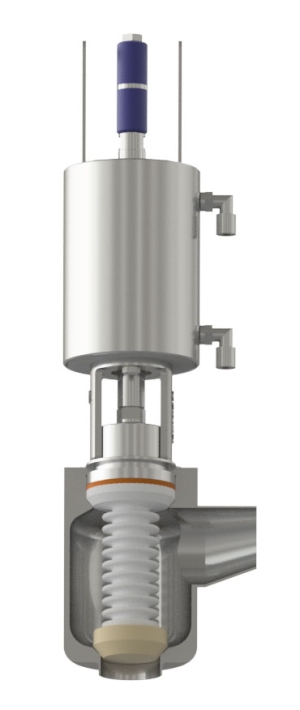

Bottom seat filling valve

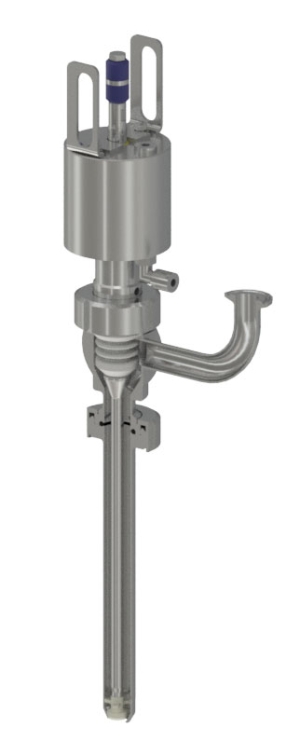

Right Angle Filling valve with resp. for filling lance
  • housing made of solid material
  • perfectly cleanable
  • inner surface Ra <= 0,8 µm (standard)
  • product space hermetically separated against ambient
  • sizes from DN 10 to 40 available
  • completely emptying/draining
  • dead space free design
  • product-protecting sterile media guidance
  • easy and quick installation without special tools
  • low downtime
  • FDA-compliant
  • long service life through enhanced pressure stability (up to 5 000 000 operations; depending on application)
  • folds remain open in open position, therefore easily cleanable
  • large stroke, therefore also suitable for fruit pieces (whole cherries or strawberries at DN 20 DIN)
  • fast acting actuator (up to 2 full cycles/second at DN 20 DIN or 3/4" or reacting time of < 200 ms)

The long service life of the PTFE bellows, optionally available with stainless steel cap or PEEK cap for liquids with grains, ensures low downtime.

Because of open folds in the open state, the cleaning performance is optimal.
Several valves, combined to valve blocks in filling machines, aseptically fill up products like yogurt.


Suitable valve for filling application available:

Some products such as yogurt or baby food are filled in a cup respectively a glas from the top (above liquid level).
Other products are filled via a lance slightly above or even below liquid level,  e.g. salad dressing or shampoo.

On request.

All Valves are available in special alloys, such as Hastelloy® C-22, 1.4539/904L, 1.4529, AL-6XN® and others.
