Hygienic Double Seal Valves DD

RIEGER Double Seal Valves DD are used for the mix-proof barrier of product and cleaning medium in pipe sections. The leakage chamber is placed between the separating seals. The leakage is discharged via the leakage valves to the outside.
The design of the one-piece, solid and cavity-free valve housing provides optimal CIP/SIP cleaning options. The valves are used in systems of the brewery and beverage industry, in dairies and in the food industry and pharmaceutical industry.

Materialin contact with product
optional
not in contact with product
1.4404/AISI316L
1.4435/AISI316L
1.4301/AISI304

Gaskets

O-rings/gaskets
 		EPDM
(others on request)

Temperatures
maximum
 EPDM
 continuous operation

steam sterilization
 130 °C*

150 °C*

Pressures

closing pressure

air pressure
 		max. 6 bar

min 6 bar -
max. 10 bar

Surfaces

in contact with product
optional


not in contact with product
Ra ≤ 0,8 µm
e-polished,
other surfaces
on request
Ra ≤ 1,6 µm

Connections
Standard-
pipe classes		DIN 11850-R2 (DIN 11866 A)
O.D.-Tube (DIN 11866 C)

                                                                                 *dependent upon operating conditions

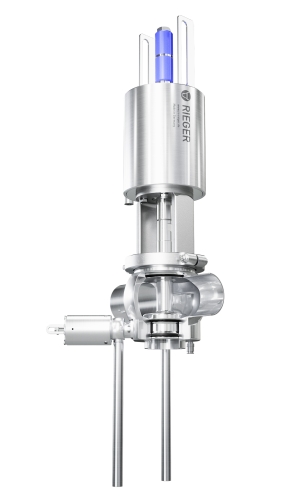

Double Seal Right Angle Type L

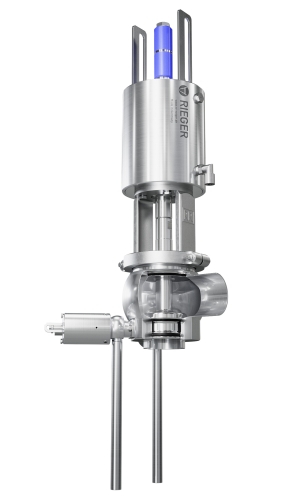

Double Seal Double Right Angle Type T

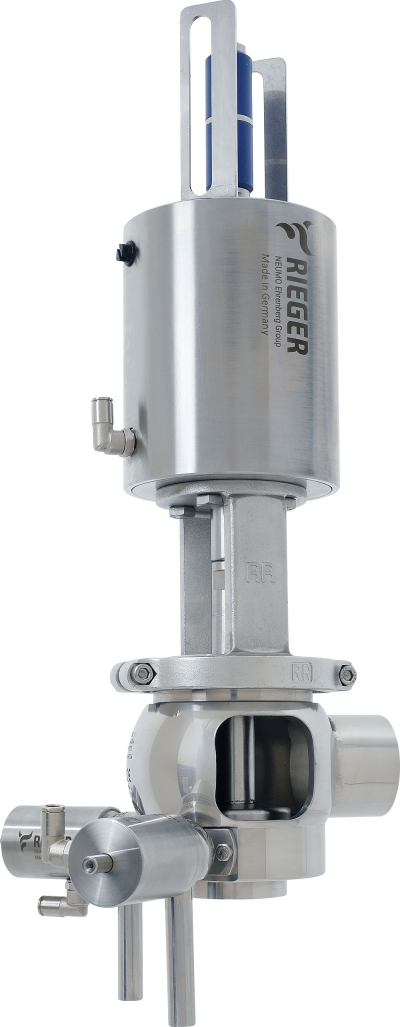

Double Seal Cross Type TT
Construction of the valve

one-piece solid valve body

no dead space

safe CIP/SIP cleaning


Absolute product safety

radial sealing of valve disks

safe separation of products

leakage is safely drained off


Serviceability

seal replacement without special tools

valve insert completely

removable upwards


Efficiency

standard O-rings

few seals

minimal maintenance costs


This control top has been developed between AWH and Rieger in collaboration with Bürkert. It serves as a custom-fit solution for our in-house hygienic and aseptic process valves to achieve an even more efficient and precise application.


Contact-free inductive valve position measuring (Teach function)

  • status display luminated in colour
  • integrated control air supply to the actuator
  • field bus port AS-interface, DeviceNet, IO-Link or Bürkert system bus (büS)
  • with ATEX-option:
    Ex II 3 G Ex ec IIC T4 Gc X
    Ex II 3 D Ex tc IIIC T135°C Dc X


FlowStar is available in the models 24 V DC, AS-I bus, IO-Link (Port Class A) or Ethernet IP.
All models  are available as the following alternatives::

  • without solenoid valve, 3 internal proximity switches + 1 outlet for external proximity switch
  • 1 solenoid valve, 3 internal proximity switches + 1 outlet for external proximity switch
  • 2 solenoid valves, 3 internal proximity switches + 1 outlet for external proximity switch


Mounting kit integrated in Control Top – no separate mounting kit necessary. Exception for LCV valves, ESV valves.

All Valves are available in special alloys, such as Hastelloy® C-22, 1.4539/904L, 1.4529, AL-6XN® and others.
