Hygienic PMO Mix Proof Valves N2

PMO variant with 3-A approval

RIEGER Hygienic Mix Proof Valves N2 provide reliable protection for your product by leak-proof separating not compatible products. For years, they are invaluable in plants of beverage and brewing industry, the pharmaceutical industry as well as the food and dairy industry in USA.
The design of its one piece valve body and the radial sealing of both valve seats along with the balanced valve disks enable a perfectly safe CIP/ IP cleaning, thus ensuring extremely high security for your products.



SpeedPush Actuator


Air consumption and consumption of cleaning media in the use of Mix Proof Valves might also be considered for total costs of ownership.

In order to reduce air consumption and consumption of cleaning media Mix Proof Valves with reduced air volume in the actuator are recommended. With a reduced volume, faster switching of valve disks during CIP is possible to reach the desired cleaning result even faster. Thus, less cleaning media is required in the overall cleaning cycle.
Materialin contact with product
optional
not in contact with product
1.4404/AISI316L
1.4435/AISI316L
1.4301/AISI304

GasketsO-rings/gaskets
 		EPDM
(others on request)

Temperaturesmaximum
 EPDM
 continuous operation
steam sterilization
 		 130 °C*
150 °C* short-time
(approx. 20 min)

Pressuresclosing pressure

air pressure
 		max. 10 bar

min 6 bar -
max. 10 bar

Surfacesin contact with product
optional


not in contact with product
Ra ≤ 0,8 µm
e-polished, other surfaces on request

Ra ≤ 1,6 µm

Connections
Standard- pipe
classes		DIN 11850-R2 (DIN 11866 A)
O.D.-Tube (DIN 11866 C)

                                                                                 *dependent upon operating conditions
reduced type

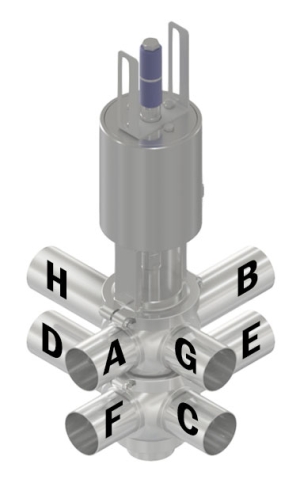

Port configurations as shown
in picture or in 360° possible.
  • one-piece solid valve body
  • no welding distortion
  • water hammer safe up to 30 bar
  • both valve disks are balanced
  • low control air consumption
  • standard actuator with 3 lift functions (open, upper seat lift, lower seat lift)
  • by lifting of both disks easy cleaning
  • valve seat removable from the top
  • radial sealing of both valve seats
  • only 4 gaskets in the product area
  • maintenance without special tools
  • stainless steel contact with product 316L
  • inner surface Ra ≤ 0,8 µm (standard)
  • also available in 3-A version
  • reduced body configurations available (see Type 200 and Type 150 of the N1)


Dimensons:

  • DN 25 – DN 200
  • 1" – 8"

This control top has been developed between AWH and Rieger in collaboration with Bürkert. It serves as a custom-fit solution for our in-house hygienic and aseptic process valves to achieve an even more efficient and precise application.


Contact-free inductive valve position measuring (Teach function)

  • status display luminated in colour
  • integrated control air supply to the actuator
  • field bus port AS-interface, DeviceNet, IO-Link or Bürkert system bus (büS)
  • with ATEX-option:
    Ex II 3 G Ex ec IIC T4 Gc X
    Ex II 3 D Ex tc IIIC T135°C Dc X


FlowStar is available in the models 24 V DC, AS-I bus, IO-Link (Port Class A) or Ethernet IP.
All models  are available as the following alternative:

  • 3 solenoid valves, 3 internal proximity switches + 1 outlet for external proximity switch


Mounting kit integrated in Control Top – no separate mounting kit necessary. Exception for LCV valves, ESV valves.

All Valves are available in special alloys, such as Hastelloy® C-22, 1.4539/904L, 1.4529, AL-6XN® and others.
